Area light

  • Side arm Architectural Post Top Area Light
  • Side arm Architectural Post Top Area Light
  • Side arm Architectural Post Top Area Light
Side arm Architectural Post Top Area LightSide arm Architectural Post Top Area LightSide arm Architectural Post Top Area Light

Side arm Architectural Post Top Area Light

  • watt: 40w - 150w
  • Efficiency: 130 Lumen/w
  • Voltage: 120-277V/480V
  • CCT & Watt tunable

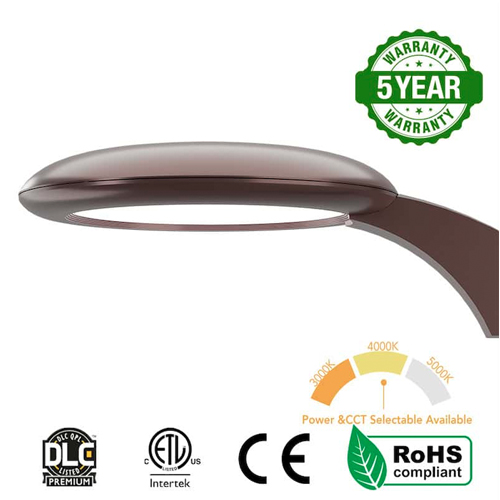

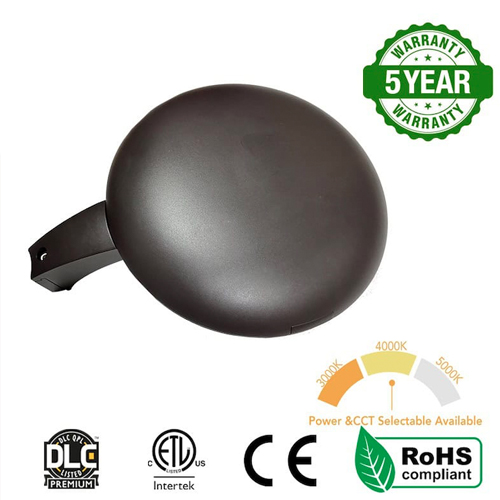

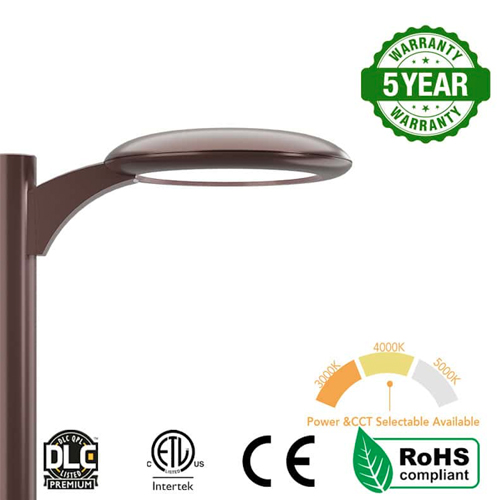

  • Product description: Side arm Architectural Post Top Area Light

The CPT08A Series LED Area Light is a sophisticated outdoor lighting fixture known for its sleek and unobtrusive arm design. It can be easily mounted on both round and square poles (utilizing the B2 drill pattern) without the need for an additional adapter. The fixture offers several customization options, including decorative and spun aluminum base covers, as well as the option to pair it with a contemporary tapered pole that matches the base. Additionally, companion luminaire versions are available for post-top, wall, pendant, and surface/direct mounting, allowing for a cohesive outdoor lighting plan.

Featuring a broad aperture lens with a dense array of LEDs, this LED Area Light is recognized for its top-tier performance, utilizing high-efficiency LEDs and delivering true IES distributions for consistent and efficient illumination. For enhanced visual comfort, there is an optional diffuse lens available. This fixture can be personalized with a choice of CKRA’s four standard painting finishes or custom colors to meet specific design and branding needs.




Dark Bronze, Black, White, Custom Color

Part Number





40W to 150W, CCT and Power Selectable

Lumen Efficacy


Product Details


  • Rugged die-cast aluminum housing.

  • High-density LED optical system delivers industry-leading.

  • The diffused lens version provides maximum visual comfort with reduced brightness and LED pixelization.

  • Available in 5000K, 4000K, 3500K, 3000K, and 2700K color temperatures per ANSI C78.377. Also available in Phosphor Converted Amber with Peak intensity at 610nm.

  • External Shield available for field installation.
  • Equivalent up to 500 Watt Metal Halide or High-pressure sodium fixture.

  • ETL wet location listed and DLC Premium qualified.
  • The driver is fully encased in potting material for moisture resistance and complies with FCC standards. Driver and key electronic components can easily be accessed by pushing only one buckle
  • Type V optics produce a round distribution which is perfect for parking lots and pathways.

Product Series Wattage Color Temp Voltage Mount Distribution Options Finish
LED area light series 040=40W 30K=3000K UL=120-277V RSM= Round Side Mount T3=Type 3 MS=Motion Sensor BZ=Dark Bronze
060=60W 40K=4000K UM=120-347V SSM= Square Side Mount  T4=Type 4 PC=Photocell WH=White
080=80W 50K=5000K UH=347-480V SP=Slipftter Mount T5=Type 5 S=SPD BK=Black
CPT08A 100=100W CCT=3/4/5000K N=Blank GY=Grey
120=120W CC= Custom Color
