Area light
Architectural Post Top Area Light
- watt: 40w - 150w
- Efficiency: 130 Lumen/w
- Voltage: 120-277V/480V
- CCT & Watt tunable
- Product description: 40w - 150w Architectural Post Top Area Light

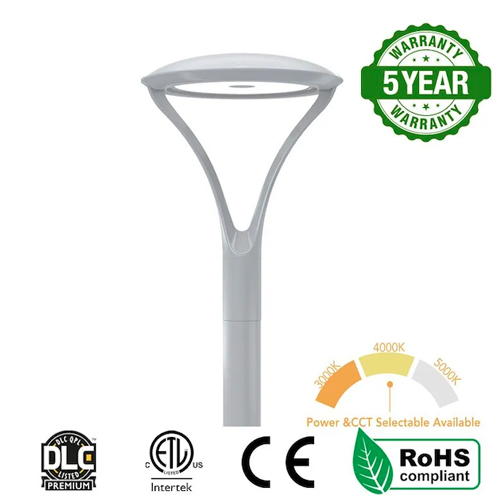

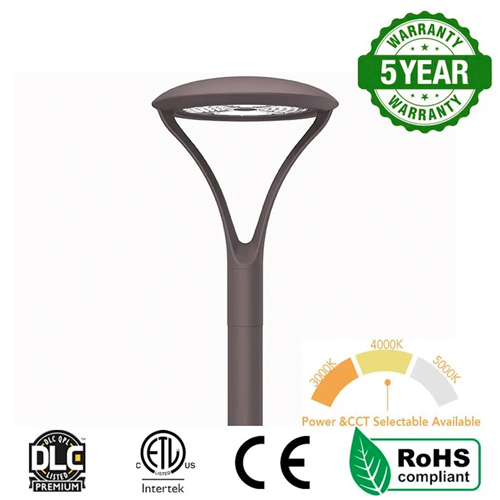

The CPT08A Post Top is a stylish outdoor lighting fixture known for its twin cast aluminum arms and base, designed for direct mounting onto a 2 3/8” to 3” OD tenon. It can also be seamlessly mounted on a 4” round pole with an optional flush mount adapter. This fixture provides various aesthetic choices with decorative and spun aluminum base covers, a contemporary tapered pole that matches the base, twin arm post top, and wall mount brackets. Additionally, it has companion luminaire versions designed for side arm/pole, wall, pendant, and surface/direct mounting.
Featuring a large aperture lens housing a dense array of LEDs, Opulence excels in terms of performance with its high-efficiency LEDs and true IES distributions. For enhanced visual comfort, there’s an option to use a diffuse lens. It’s available in LSI’s eight standard painting finishes, as well as custom colors, allowing for personalization to match specific design preferences or branding requirements.
Certification
ETL DLC PREMIUM CE ROHS
Finish
Dark Bronze, Black, White, Custom Color
Part Number
CPT08A
Voltage
120-277V/120-347V/480V
Wattage
40W to 150W, CCT and Power Selectable
Lumen Efficacy
140LPW
The CPT08A Post Top is a stylish outdoor lighting fixture known for its twin cast aluminum arms and base, designed for direct mounting onto a 2 3/8” to 3” OD tenon. It can also be seamlessly mounted on a 4” round pole with an optional flush mount adapter. This fixture provides various aesthetic choices with decorative and spun aluminum base covers, a contemporary tapered pole that matches the base, twin arm post top, and wall mount brackets. Additionally, it has companion luminaire versions designed for side arm/pole, wall, pendant, and surface/direct mounting.
Featuring a large aperture lens housing a dense array of LEDs, Opulence excels in terms of performance with its high-efficiency LEDs and true IES distributions. For enhanced visual comfort, there’s an option to use a diffuse lens. It’s available in LSI’s eight standard painting finishes, as well as custom colors, allowing for personalization to match specific design preferences or branding requirements.
| Certification |
ETL DLC PREMIUM CE ROHS |
|---|---|
| Finish |
Dark Bronze, Black, White, Custom Color |
| Part Number |
CPT08A |
| Voltage |
120-277V/120-347V/480V |
| Wattage |
40W to 150W, CCT and Power Selectable |
| Lumen Efficacy |
140LPW |
Product Details
Advantages:
-
Good lighting solution for large outdoor areas such as parking lots, corporate parks.
-
Type IV V optics produce a round distribution which is perfect for parking lots and pathways
-
Frost lens for protecting eyes, creating soft lighting, no glare.
-
Design to fit on standard 2 3/8″ tenons(Other sizes we have adapters), making it easy and cost-effective to upgrade to LED.
-
Equivalent up to 500 Watt Metal Halide or High-pressure sodium fixture.
- ETL wet location listed and DLC Premium qualified.
-
Type V optics produce a round distribution which is perfect for parking lots and pathways.
| Product Series | Wattage | Color Temp | Voltage | Mount | Distribution | Options | Finish |
| Post top area light series | 040=40W | 30K=3000K | UL=120-277V | PM= Pole Mount | T5=Type 5 | MS=Motion Sensor | BZ=Dark Bronze |
| 060=60W | 40K=4000K | UM=120-347V | PC=Photocell | WH=White | |||
| 080=80W | 50K=5000K | UH=347-480V | S=SPD | BK=Black | |||
| CPT08A | 100=100W | CCT=3/4/5000K | N=Blank | GY=Grey | |||
| 120=120W | CC= Custom Color | ||||||
| 150=150W | |||||||
| PS1=40-60-80W | |||||||
| PS2=100-120-150W |
