   >   1000w led stadium light

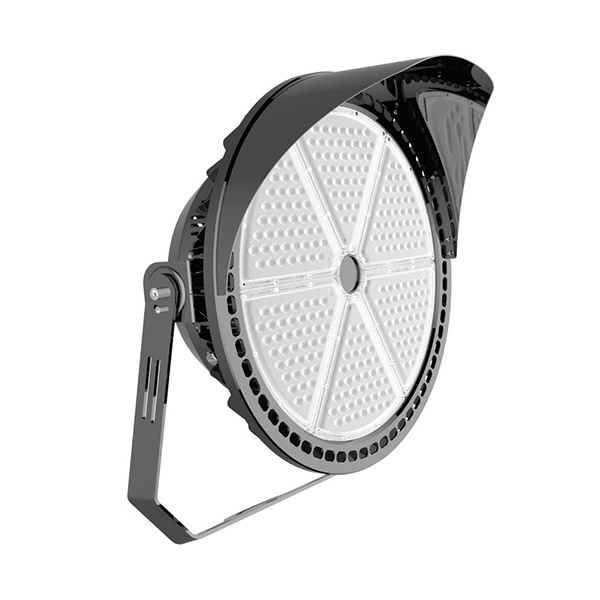

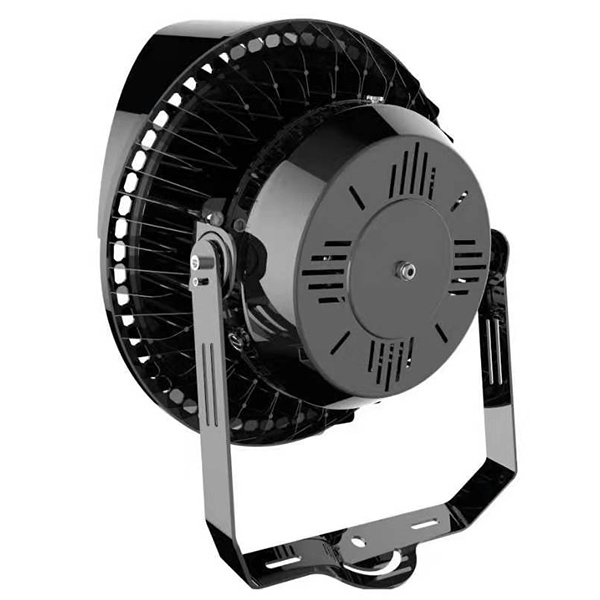

1000w led stadium light

  • 1000w led stadium light
  • 1000w led stadium light
1000w led stadium light1000w led stadium light

1000w led stadium light

  • Code: CFL3L
  • Voltage: 120-277V
  • CCT: 4000K/5000K
  • Bracket: U bracket
  • Product description: 1000w led stadium light, high watt Led sport lights used for tennis counts, golf courses, sports counts and others. Energy-efficient solution for lighting stadiums and sports fields.
  • INQUIRY

APPLICATIONS

High watt Led sport lights used for tennis counts, golf courses, sports counts and others.

Energy-efficient solution for lighting stadiums and sports fields.



SPECIFICATIONS

01. Corrosion resistant, rugged die-cast aluminum housing with powder coat paint finish.

02. High impact UV stabilized PC injection lens provide a variety of distribution.

03. Compact frame to fix lens with water proof rubber inside to ensure IP65 grade.

04. Stainless screws ensure anti-rust.

05. IP65 internal driver.

06. Compact design housing isolates LED module from driver which ensure heat sink.

07. Easy to install and operate.

08. Long lifespan, energy saving.

09. ROHS compliant, ambient operating temperature -40°C to 40°C.

11. Green and eco-friendly without mercury.

12. Input voltage 120-277V.



Item

Value

Product Code

CFL3L

Mount

U-bracket

Watt

1000w

Voltage

120-277V/347V-480V

Beam Option

Wide beam: narrow 15º

Middle beam: 30º

CCT

3000K/4000K/5000K

Chip

Luminleds 5050

Driver

Inventronics (UL listed)

Lumen

1000W led stadium light: 130,000 lumen

Efficiency

1000W led stadium light: 130 LPW

Weight

1000W led flood light: 32.5 Kg

Packing

Single carton(1pcs): 760*680*290 mm

Finish

Standard: Bronze (RAL8019)

Customer Color: White or others

Installation

U-racket

Options

Twist-in photocell

SPD
