   >   100W 150w gas station canopy light

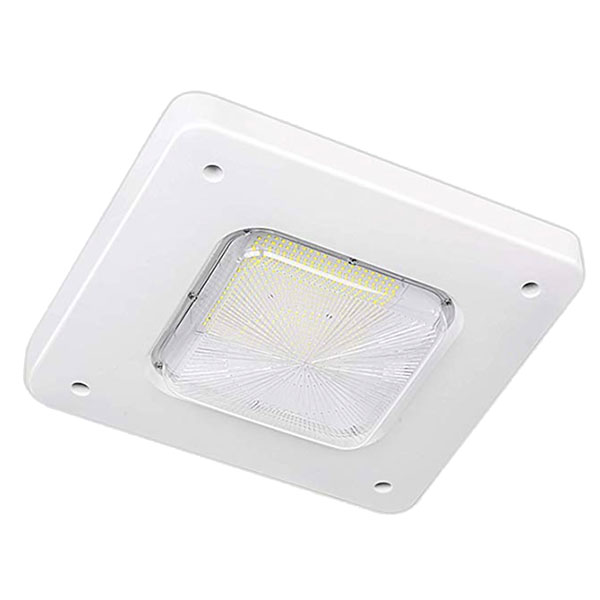

100W 150w gas station canopy light

  • 100w 150w gas station canopy light
  • 100w 150w gas station canopy light
  • 100w 150w gas station canopy light
  • 100w 150w gas station canopy light
  • 100w 150w gas station canopy light
  • 100w 150w gas station canopy light
100w 150w gas station canopy light100w 150w gas station canopy light100w 150w gas station canopy light100w 150w gas station canopy light100w 150w gas station canopy light100w 150w gas station canopy light

100w 150w gas station canopy light

  • Code: CCP1L
  • Voltage: 120-277V
  • CCT: 4000K/5000K
  • Bracket: Surface mounted
  • Product description: 100w 150w gas station canopy light, Ideal for small garages and gas station, outdoor walkways and areas, storage areas, small warehouses, and indoor closets.
  • INQUIRY

APPLICATIONS

Ideal for small garages and gas station, outdoor walkways and areas, storage areas,

small warehouses, and indoor closets.



SPECIFICATIONS

01. Corrosion resistant, rugged die-cast aluminum housing with powder coat paint finish.

02. The front view Imported PC lens is 95% efficient minimizing light loss.

03. IP65 grade suitable for outdoor application.

04. All screws are stainless to make sure no rusty.

05. Direct replacement for 250 watt – 400 watt traditional style HID wall packs

06. Lens with rubber inside to make sure IP65. Easy to open fixture,

quick access to electric.

07. Surface mounted as standard, one person can finish installation, save labor cost.

08. IP67 driver and ROHS compliant, ambient operating temperature -40°C to 40°C.

09. ETL and DLC listed.

10. SPD is available as optional.

11. 120-277V/347V/480V

Item

Value

Product Code

CCP1L

Mount

Surface mounted or pendent

Watt

100w/150w

Voltage

120-277V

Beam Option

110º

CCT

4000K/5000K

Chip

Seoul 2835

Driver

Weledpower (UL listed)

Lumen

100W gas station canopy: 13000 lumen

150W gas station canopy: 18750 lumen

Efficiency

100W gas station canopy: 130 LPW

150W gas station canopy: 125 LPW

Weight

100W gas station canopy: 5.2 Kg

150W gas station canopy: 5.9 Kg

Packing

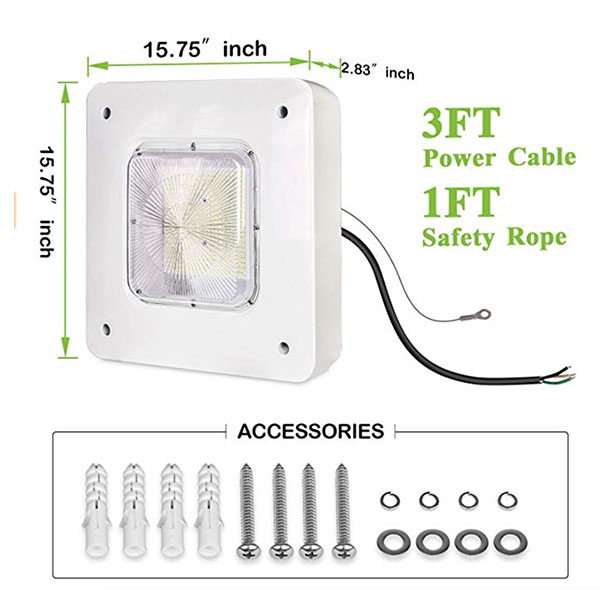

Single carton(1pcs): 480*480*135mm

Finish

Standard: White

Customer Color: Yes

Installation

Surface mounted or pendent

Options

SPD
