   >   240w 300w smd led flood light

240w 300w smd led flood light

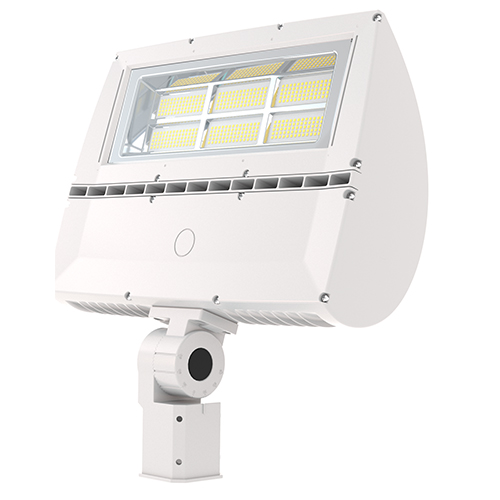

  • 200W 240W 300W SMD Led flood light
  • 200W 240W 300W SMD Led flood light
200W 240W 300W SMD Led flood light 200W 240W 300W SMD Led flood light

200W 240W 300W SMD Led flood light

  • Code: CFL1X
  • Voltage: 120-277V
  • CCT: 4000K/5000K
  • Bracket: Slip fitter or Trunnion
  • Product description: 200W 240W 300W SMD Led flood light for outdoor applications, 3000K, 4000K, 5000K, medium size flood light, full kind of bracket like slip fitter, yoke and u bracket.
  • INQUIRY

Full series led flood light 20w-300w



APPLICATIONS


Compact LED flood light 300w 240w with a variety of NEMA distribution for lighting applications such as building façades, sign lighting and wall washing in both commercial and industrial applications.

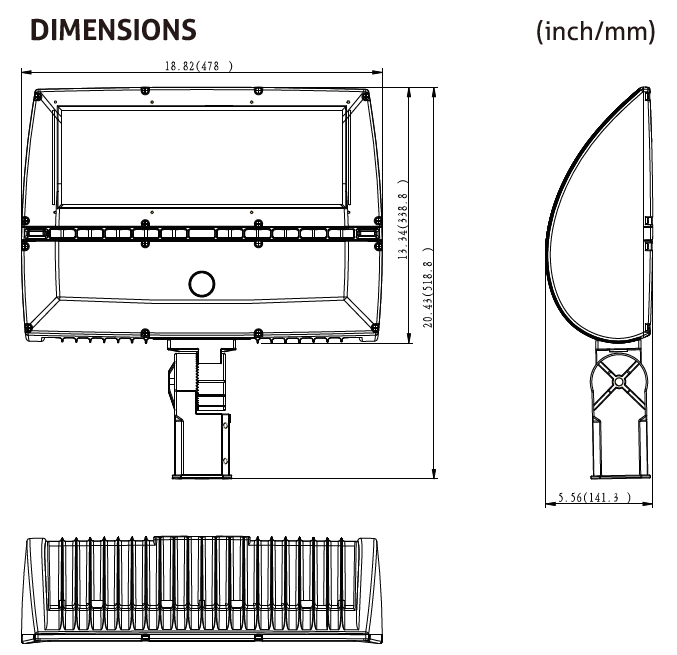

Dimensions

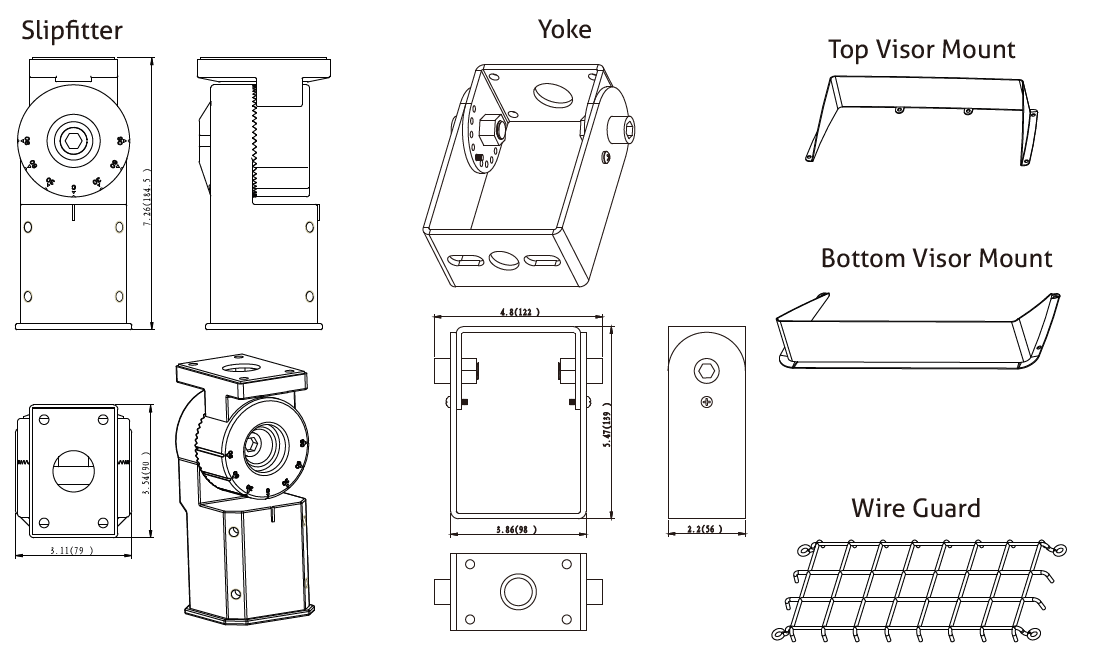

Installation bracket

SPECIFICATIONS

01. Corrosion resistant, rugged die-cast aluminum housing with powder coat paint finish.

02. High impact UV stabilized PC injection lens provide a variety of NEMA distribution.

03. Compact frame to fix lens with water proof rubber inside to ensure IP65 grade.

04. Stainless screws ensure anti-rust.

05. Design concept came from a “bird” stand on the tree with patent design and perfect detail.

06. Compact design housing isolates LED module from driver which ensure heat sink.

07. Installation of different brackets are “field replaceable”, only remove 4 screws can change

the installed bracket, good for stock flow systems, easy to manage.

08. Easy replacement for different kind of NEMA distributions, only remove 10 screws of

frame cover, then replace the installed UV PC injection lens with new one.

09. IP67 driver and ROHS compliant, ambient operating temperature -40°C to 40°C.

10. ETL and Premium DLC listed.

Item

Value

Product Code

CFL2X

Mount

Slip fitter or Trunnion (U-bracket)

Watt

200w/240W/300W

Voltage

120-277V/347V-480V

Beam Option

Wide beam: NEMA 7H6V

Middle beam: NEMA 5H5V

CCT

3000K/4000K/5000K

Chip

Citizen or Bridgelux

Driver

Weledpower (UL listed)

Lumen

240W led flood light: 30316.8 lumen

300W led flood light: 37578 lumen

Efficiency

240W led flood light: 126.32 LPW

300W led flood light: 125.26 LPW

Weight

240W led flood light: 12.3 Kg

300W led flood light: 12.9 Kg

Packing

Single carton(1pcs): 555*523*191 mm

Finish

Standard: Bronze (RAL8019)

Customer Color: White or others

Installation

Slip fitter or Trunnion (U-racket)

Options

Twist-in photocell

SPD
