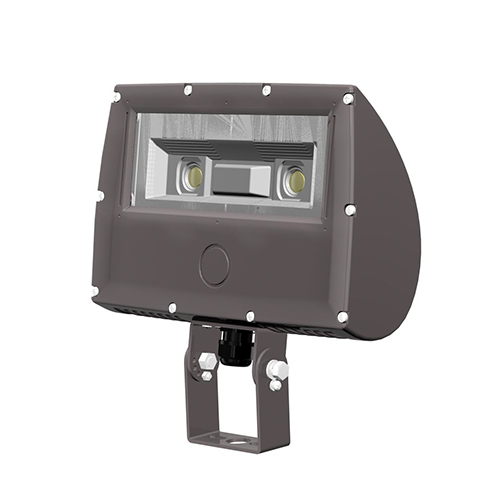

50W 70W COB Led flood light

  • Code: CFL1S
  • Voltage: 120-277V
  • CCT: 4000K/5000K

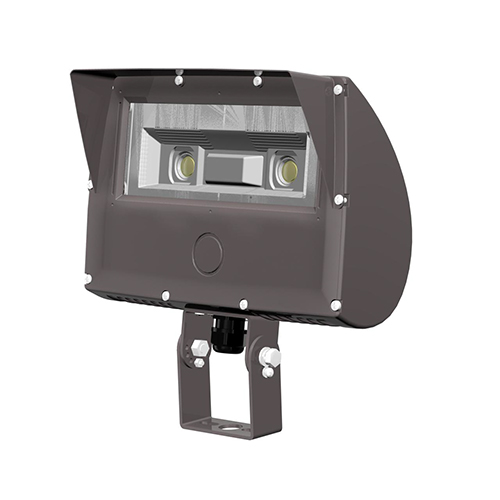

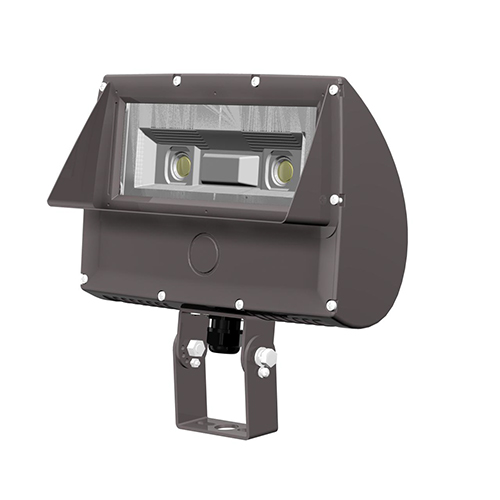

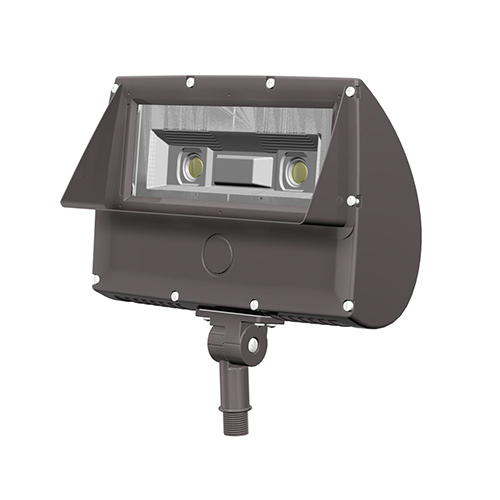

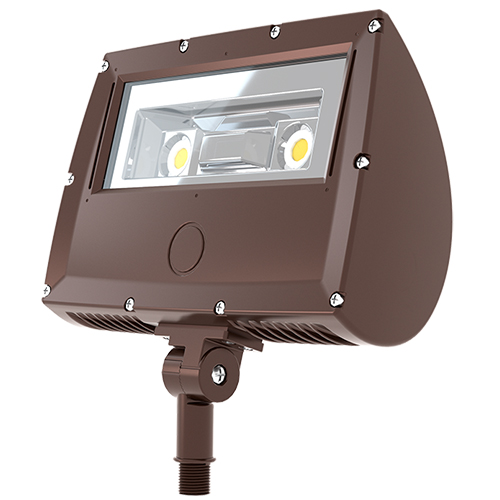

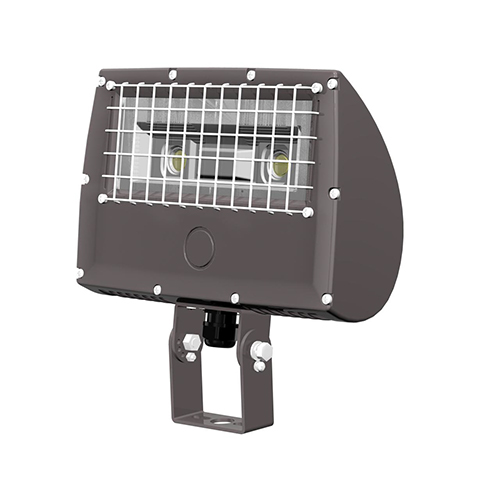

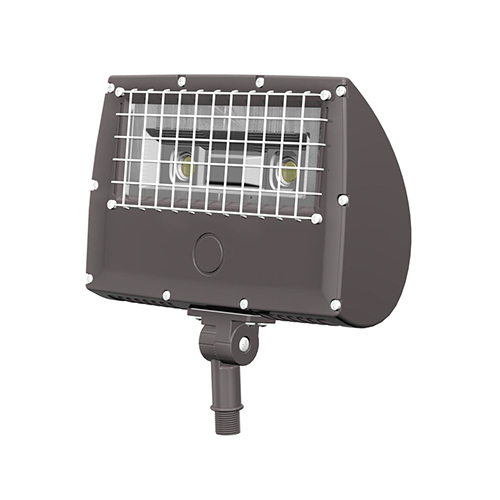

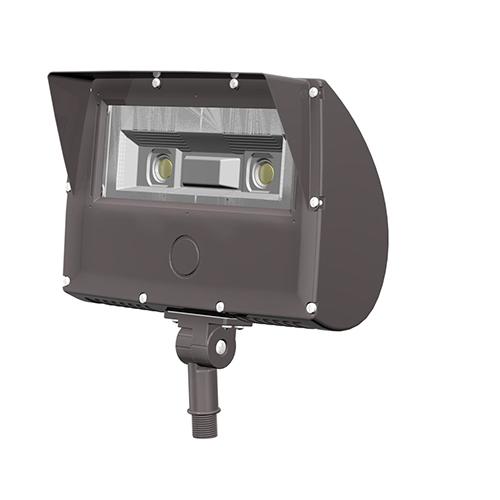

  • Bracket: Knuckle or Trunnion
  • Product description:
  • INQUIRY


APPLICATIONS

Compact LED flood with a variety of NEMA distribution for lighting applications such as building façades, sign lighting and wall washing in both commercial and industrial applications.


SPECIFICATIONS

01. Corrosion resistant, rugged die-cast aluminum housing with powder coat paint finish.

02. High impact UV stabilized PC injection lens provide a variety of NEMA distribution.

03. Compact frame to fix lens with water proof rubber inside to ensure IP65 grade.

04. Stainless screws ensure anti-rust.

05. Design concept came from a “bird” stand on the tree with patent design and perfect detail.

06. Compact design housing isolates LED module from driver which ensure heat sink.

07. Installation of different brackets are “field replaceable”, only remove 4 screws can change

the installed bracket, good for stock flow systems, easy to manage.

08. Easy replacement for different kind of NEMA distributions, only remove 10 screws of

frame cover, then replace the installed UV PC injection lens with new one.

09. IP67 driver and ROHS compliant, ambient operating temperature -40°C to 40°C.

10. ETL and Premium DLC listed.


Item

Value

Product Code

CFL2M

Mount

1/2” thread or Trunnion (U-bracket)

Watt

50w/70w

Voltage

120-277V

Beam Option

Wide beam: NEMA 7H6V

Middle beam: NEMA 5H5V

CCT

3000K/4000K/5000K

Chip

Citizen or Bridgelux

Driver

Weledpower (UL listed)

Lumen

50W: 6621.1 lumen

70W: 9101.6 lumen

Efficiency

50W: 134.10 LPW

70W: 125.80 LPW

Weight

50W: 4.7 Kg

70W: 5.1 Kg

Packing

Single carton(1pcs): 325*322*130mm

Finish

Standard: Bronze (RAL8019)

Customer Color: White or others

Installation

Knuckle or U-racket

Options

Button on photocell

SPD
