   >   1/2 cutoff wall pack PC lens

1/2 cutoff wall pack PC lens

  • 40w 60w 80w 120w semi cutoff wall pack PC lens
  • 40w 60w 80w 120w semi cutoff wall pack PC lens
  • 40w 60w 80w 120w semi cutoff wall pack PC lens
  • 40w 60w 80w 120w semi cutoff wall pack PC lens
  • 40w 60w 80w 120w semi cutoff wall pack PC lens
40w 60w 80w 120w semi cutoff wall pack PC lens40w 60w 80w 120w semi cutoff wall pack PC lens40w 60w 80w 120w semi cutoff wall pack PC lens40w 60w 80w 120w semi cutoff wall pack PC lens40w 60w 80w 120w semi cutoff wall pack PC lens

40w 60w 80w 120w semi cutoff wall pack PC lens

  • Code: CWP1S
  • Voltage: 120-277V
  • CCT: 4000K/5000K
  • Certifications: ETL/DLC
  • Product description: 40w 60w 80w 120w semi cutoff wall pack PC lens
  • INQUIRY

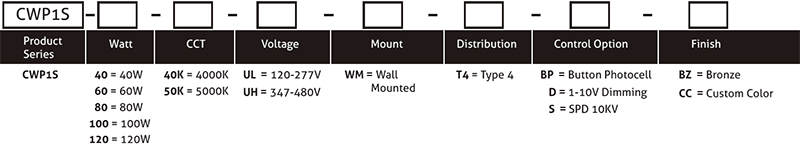

ORDERING INFORMATION - MADE TO ORDER



APPLICATIONS

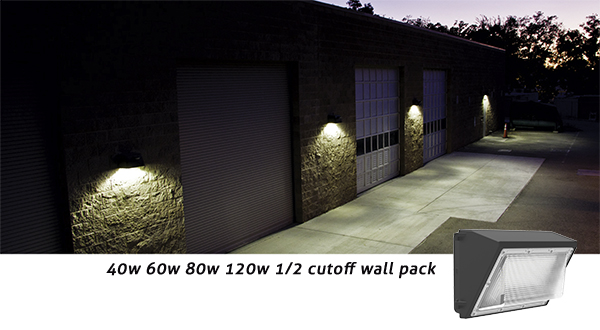

Outdoor wall mount light Typically found on office buildings, government buildings, hospitals, college campuses, hotels, stores, and some residential settings.

SPECIFICATIONS

01. Corrosion resistant, rugged die-cast aluminum housing with powder coat paint finish.

02. The front view imported anti-UV PC lens is 95% efficient minimizing light loss.

03. IP65 grade suitable for outdoor application.

04. All screws are stainless to make sure no rusty.

05. Direct replacement for 100 watt – 400 Watt traditional style HID wall packs

07. PC Lens with rubber inside to make sure IP65. Easy to open fixture,

quick access to electric.

08. Wall mounted as standard, one person can finish installation, save labor cost.

09. IP65 driver and ROHS compliant, ambient operating temperature -40°C to 40°C.

10. ETL and DLC listed.

11. Button-on photocell and SPD are available as optional.

12. 120-277V/347V/480V

Item

Value

Product Code

CWP1S

Mount

Surface mounted

Watt

40w/60w/80w/120w

Voltage

120-277V/347-480V

Beam Option

1/2 cutoff

CCT

3000K/4000K/5000K

Chip

Seoul 2835

Driver

Weledpower (UL listed)

Lumen

40W: 4803.2 lumen

60W: 7206.3 lumen

80W: 9412.4 lumen

120W: 14769.2 lumen

Efficiency

40W: 119.48 LPW

60W: 117.18 LPW

80W: 121.92 LPW

120W: 122.67 LPW

Weight

40W: 3.1 Kg

60W: 3.3 Kg

80W: 4.2 Kg

120W: 4.8 Kg

Packing

Single carton(1pcs): 390*270*240mm

Finish

Standard: Bronze (RAL8019)

Customer Color: White or others

Installation

Surface mounted

Options

Button on photocell

SPD
