   >   LED Troffer Light

LED Troffer Light

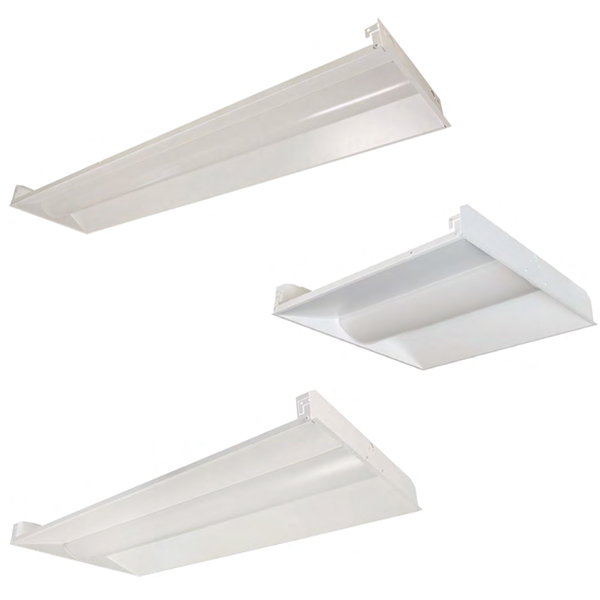

  • 1x4 2x4 2x4 led troffer light
1x4 2x4 2x4 led troffer light

1x4 2x4 2x4 led troffer light

  • Code: XbyY-ZW-H000K
  • Voltage: 120-277V
  • CCT: 3500K/4000K/5000K
  • Bracket: Surface mounted
  • Product description: 1x4 2x4 2x4 led troffer light
  • INQUIRY

APPLICATIONS

The new LED Architectural troffer fixture adopts the latest in optical and LED technology for use in many commercial applications. The TRF series provides a single pleasant volumetric soft light that fills any interior space, giving it a larger, brighter, and more productive ambiance. Used for offices, hallways, multipurpose Rooms and conference rooms.



SPECIFICATIONS

01. Steel housing with powder coat paint finish.

02. Frost lens to avoid glare.

03. IP65 grade suitable for wet locations.

04. 3500K, 4000K, 5000K can be supplied, CRI>80

05. Watt from 18W to 55W, Direct replacement for 75 watt – 125 watt traditional style HID Lights.

07. 0-10V diming as standard.

08. Mounting: Recessed mounted.

09. IP67 driver and ROHS compliant, ambient operating temperature -20°C to 50°C.

10. UL and premium DLC listed. More than 100K hours per L70 TM-21 @ 70 °C.

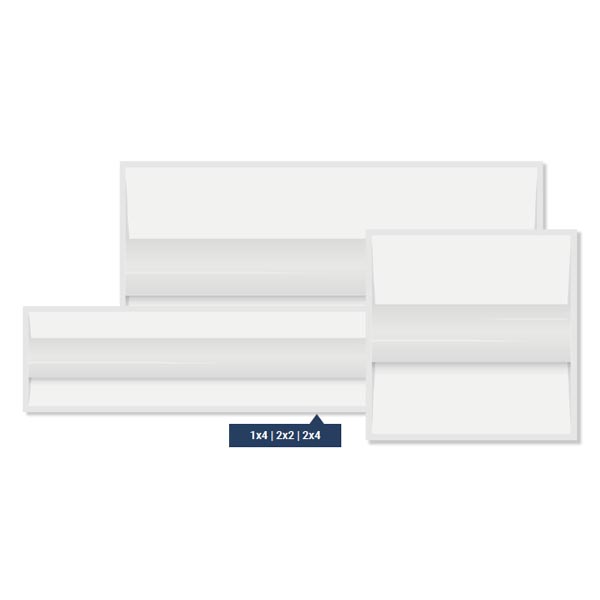

11. 1*4, 2*2, 2*4 complete serious.

12. 120-277V, 5 years warranty.

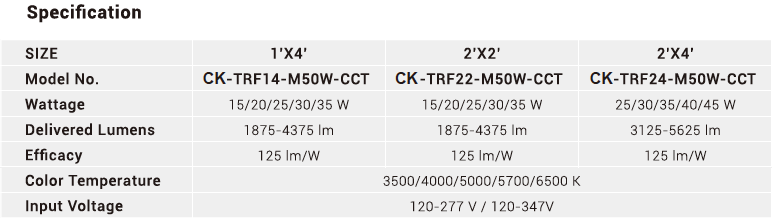

Item

Value

Product Code

X by Y- Z W – H000 K

(X=1, 2, 4); (Z=18,25,30,35,40,34,38,45,55); (H=3,4,5)

Mount

Surface mounted

Watt

2*2 Ft: 18W,25W,30W,35W,40W

2*4 Ft: 25W,30W,34W,38W,45W,55W

1*4 Ft: 30W,35W,40W

Voltage

120-277V

CCT

3500K/4000K/5000K

Chip

Seoul 2835

Driver

Simon (UL listed)

Lumen

2*2 Ft-18W: 2250 lumen

2*2 Ft-25W: 3125 lumen

2*2 Ft-30W: 3750 lumen

2*2 Ft-35W: 4375 lumen

2*2 Ft-40W: 5000 lumen

2*4 Ft-25W: 6760 lumen

2*4 Ft-30W: 8450 lumen

2*4 Ft-34W: 5980 lumen

2*4 Ft-38W: 4750 lumen

2*4 Ft-45W: 5625 lumen

2*4 Ft-55W: 6875 lumen

1*4 Ft-30W: 3750 lumen

1*4 Ft-35W: 4375 lumen

1*4 Ft-40W: 5000 lumen

Efficiency

125 LPW

Weight

2*2 ft fixture: 4.0 Kg

2*4 ft fixture: 7.4 Kg

1*4 ft fixture: 4.1 Kg

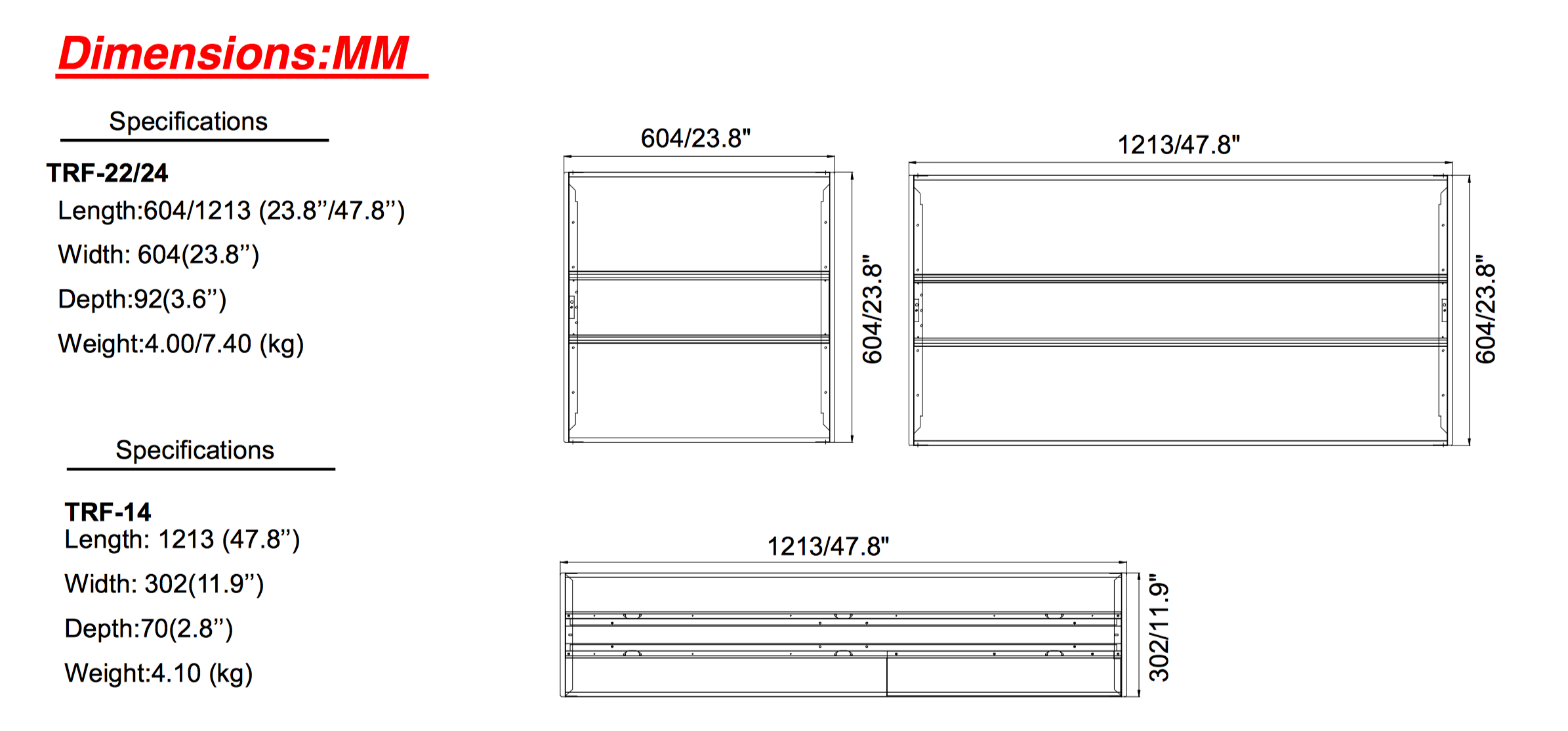

Dimensions

2*2 and 2*4:

Length:604/1213 (23.8’’/47.8’’) Width: 604(23.8’’) Depth:92(3.6’’) Weight:4.00/7.40 (kg)

1*4:

Length: 1213 (47.8’’) Width: 302(11.9’’) Depth:70(2.8’’) Weight:4.10 (kg)

Finish

Standard: Milk color housing, frost white lens
