   >   20W-90W Led Vapor Light

20W-90W Led Vapor Light

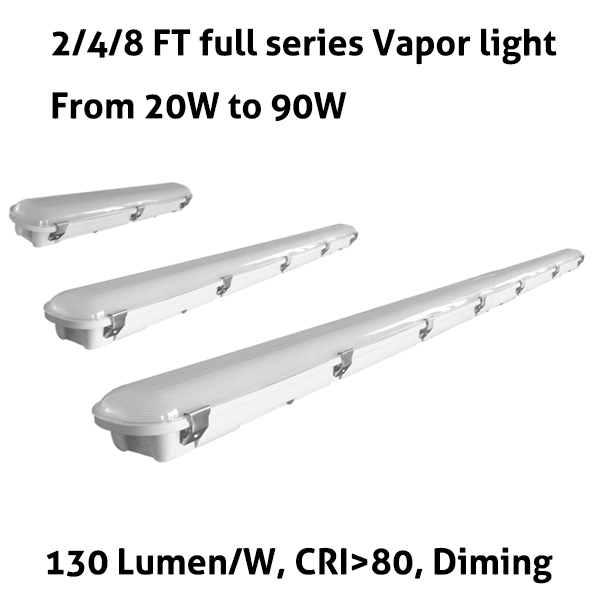

  • 2ft 4ft 8ft Led Vapor Light 20W to 90W
  • 2ft 4ft 8ft Led Vapor Light 20W to 90W
2ft 4ft 8ft Led Vapor Light 20W to 90W2ft 4ft 8ft Led Vapor Light 20W to 90W

2ft 4ft 8ft Led Vapor Light 20W to 90W

  • Code: XFT-YW-Z000K
  • Voltage: 120-277V
  • CCT: 3000K/4000K/5000K
  • Installation: V-hook
  • Product description: 2ft 4ft 8ft Led Vapor Light 20W to 90W
  • INQUIRY

APPLICATIONS

LED VAPOR TIGHT Fixtures are designed to save energy and meet low light egress requirements. Also the fixture is optimal for parking driver lane compliance. Used as utility lighting, parking garage and stairwell lighting where meets applicable building and safety codes.


SPECIFICATIONS

01. Corrosion resistant, inject PC housing with powder coat paint finish.

02. Frost lens to avoid glare.

03. IP65 grade suitable for wet locations.

04. 3000K, 4000K, 5000K can be supplied, CRI>80

05. Watt from 20W to 90W, Direct replacement for 75 watt – 250 watt traditional style HID Lights.

07. 0-10V diming as standard.

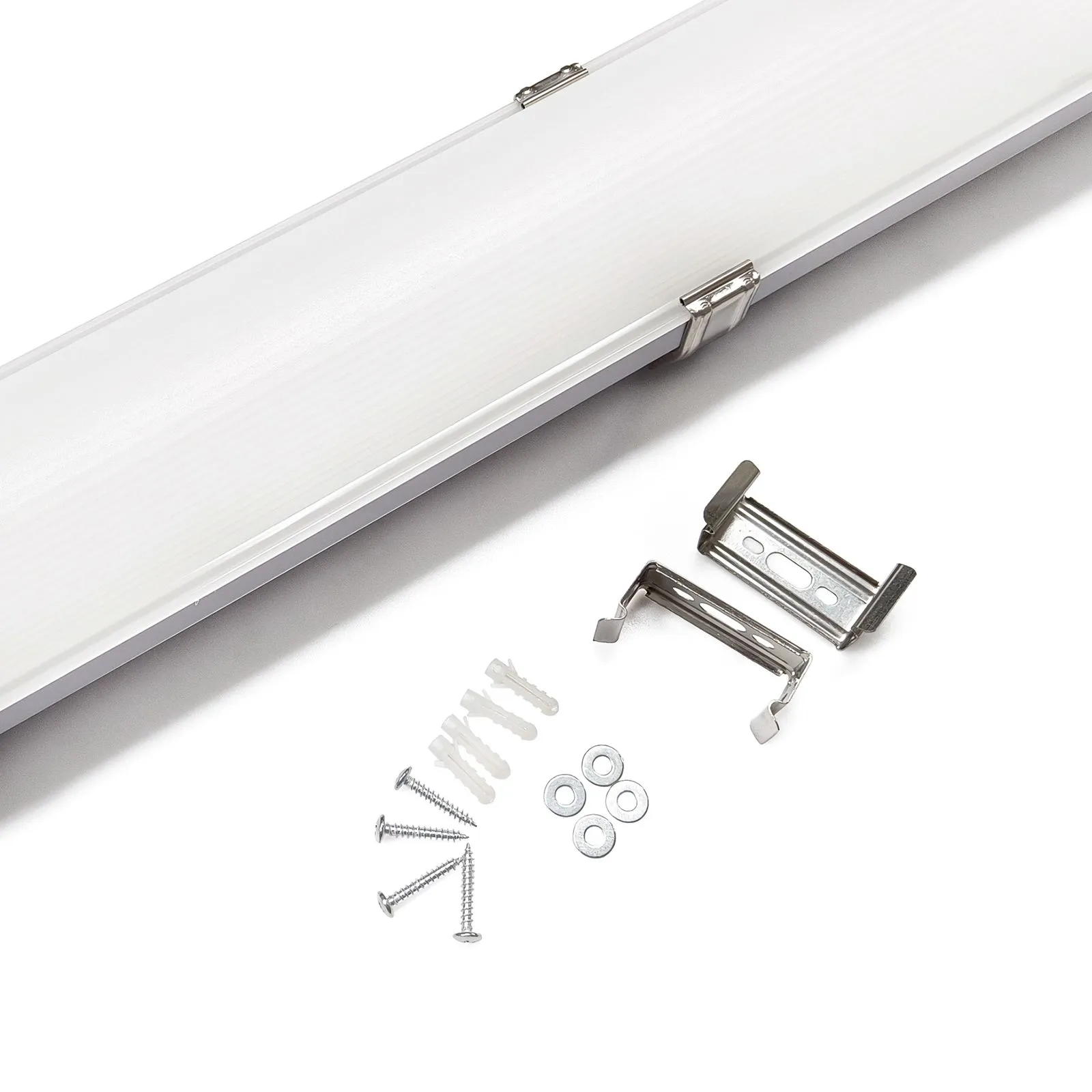

08. Mounting: V-Hook ready or Surface mounted.

09. IP67 driver and ROHS compliant, ambient operating temperature -40°C to 50°C.

10. UL and premium DLC listed. More than 100K hours per L70 TM-21 @ 70 °C.

11. 2Ft, 4Ft, and 8Ft complete serious.

12. 120-277V, 5 years warranty.


Item

Value

Product Code

X FT- Y W – Z000 K

(X=2, 4, 8); (Y=20,25,34,38,45,52,65,46,75,90); (Z=3,4,5)

Mount

V-Hook readySurface mounted

Watt

2Ft: 20W,25W

4Ft: 34W,38W,45W,52W,65W

8Ft:46W,65W,75W,90W

Voltage

120-277V

CCT

3000K/4000K/5000K

Chip

Seoul 2835

Driver

Simon (UL listed)

Lumen

2Ft-20W: 2600 lumen

2Ft-25W: 3250 lumen

4Ft-34W: 4420 lumen

4Ft-38W: 4940 lumen

4Ft-45W: 5850 lumen

4Ft-52W: 6760 lumen

4Ft-65W: 8450 lumen

8Ft-46W: 5980 lumen

8Ft-65W: 8450 lumen

8Ft-75W: 9750 lumen

8Ft-90W: 11700 lumen

Efficiency

130 LPW

Weight

2ft fixture: 1.5 Kg

4ft fixture: 2.0 Kg

8ft fixture: 3.5 Kg

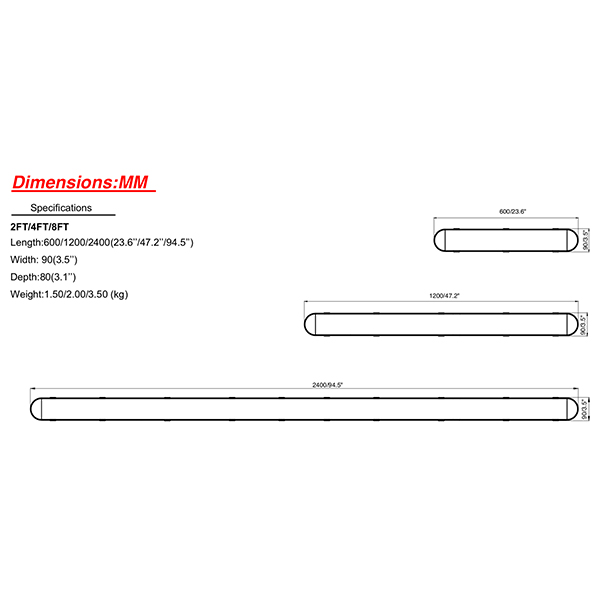

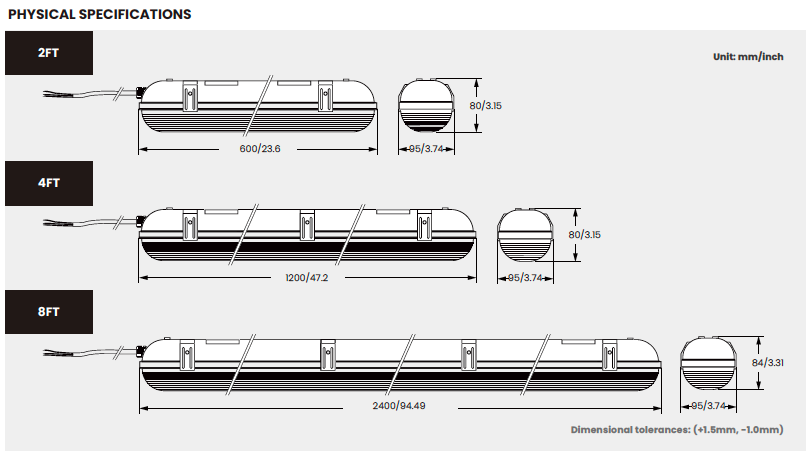

Dimensions

Length:600/1200/2400(23.6’’/47.2’’/94.5’’) Width: 90(3.5’’)
Depth:80(3.1’’)

Finish

Standard: Milk color housing, frost white lens
