Linear High bay

  • 110W 162W 223W 321W 425W Led Linear High bay
  • 110W 162W 223W 321W 425W Led Linear High bay
  • 110W 162W 223W 321W 425W Led Linear High bay
  • 110W 162W 223W 321W 425W Led Linear High bay
  • 110W 162W 223W 321W 425W Led Linear High bay
  • 110W 162W 223W 321W 425W Led Linear High bay
110W 162W 223W 321W 425W Led Linear High bay110W 162W 223W 321W 425W Led Linear High bay110W 162W 223W 321W 425W Led Linear High bay110W 162W 223W 321W 425W Led Linear High bay110W 162W 223W 321W 425W Led Linear High bay110W 162W 223W 321W 425W Led Linear High bay

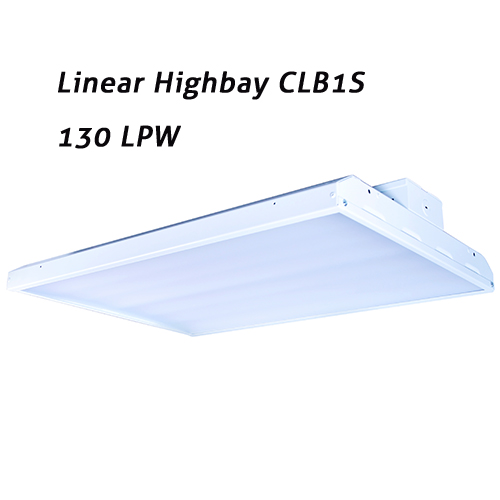

110W 162W 223W 321W 425W Led Linear High bay

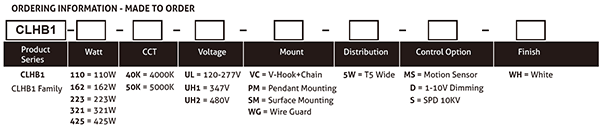

  • Code: CLHB1
  • Voltage: 120-277V
  • CCT: 4000K/5000K
  • Installation: V-hook
  • Product description:
  • INQUIRY


APPLICATIONS

Low bay and high bay fixtures, Ideal for retail, grocery, gymnasium, light industrial, warehouse and manufacturing.

SPECIFICATIONS

01. Good lighting solution for a wide variety of applications and mounting heights.

02. Precision-designed optics, multiple distributions, wide variety of lumen outputs and

color temperatures.

03. Stainless screws ensure anti-rust.

04. Frost lens to protect eyes, creating softy lighting, no glare.

05. UL 1598 suitable for damp locations.

06. UL 8750 LED equipment in Lighting Products.

07. Surface Mounted bracket as standard, one person can finish installation, save labor cost.

08. Temperature Rated at(-20℃ to +50℃) (-4℉ to 122℉).

09. UL and Premium DLC listed.

10. The 0-10V Dimming type is continuous, the products can dim to 10%.

11.Motion Sensor and SPD are available as optional.

12. 120-277V, 347V,480V

Item

Value

Product Code

CLHB1

Mount

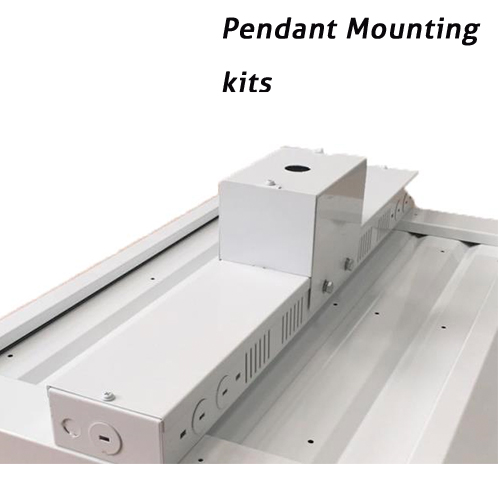

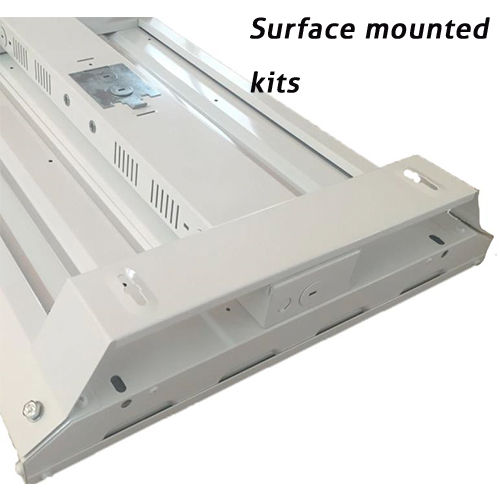

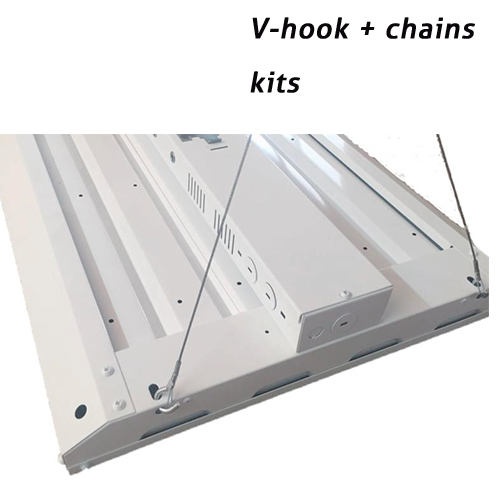

V-hook/surface mounted/ Pendant Mounting

Watt

110w/162w/223w/321w/425w

Voltage

120-277V/347v-480v

Beam Option

Wide beam: Type 5

CCT

3000K/4000K/5000K

Chip

Seoul 2835

Driver

Arcata (UL listed)

Lumen

110W: 13,938.7 lumen

162W: 20214.9 lumen

223W: 28098.9 lumen

321W: 40762.2 lumen

425W: 54935.8 lumen

Efficiency

130 LPW

Weight

110W: 5.3 Kg

165W: 5.7 Kg

223W: 6.7 Kg

321W: 9.2 Kg

425W: 10.9 Kg

Packing

110W/162W: 630*329*98mm

223W: 630*449*98mm

321W: 1195*329*98mm

425W: 1195*449*98mm

Finish

Standard: White

Installation

V-hook/surface mounted/ Pendant Mounting

Options

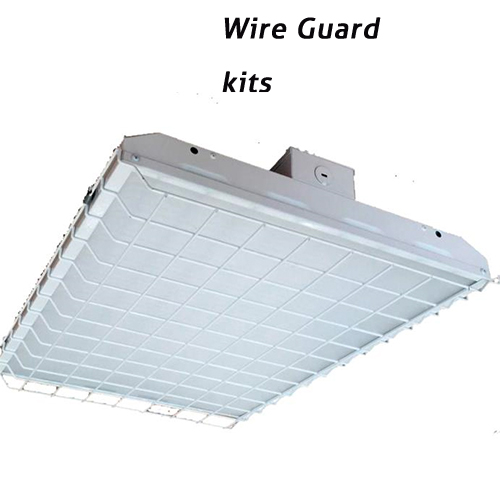

Wire guard

SPD

Battery backup

Motion sensor
