   >   100W 150W 200W Led shoebox light

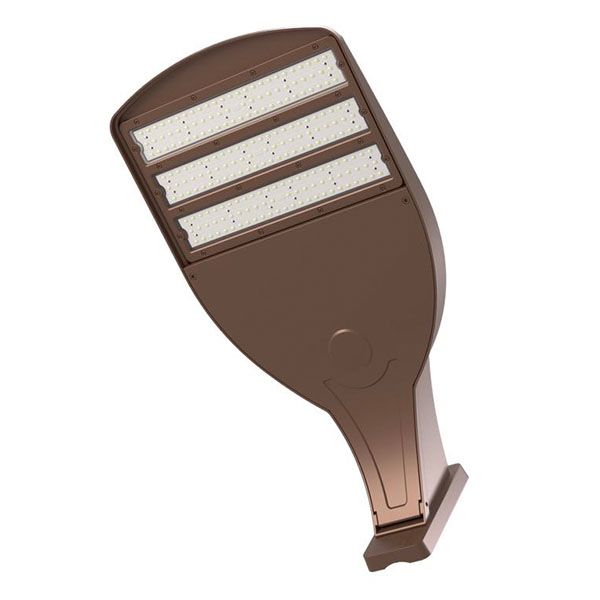

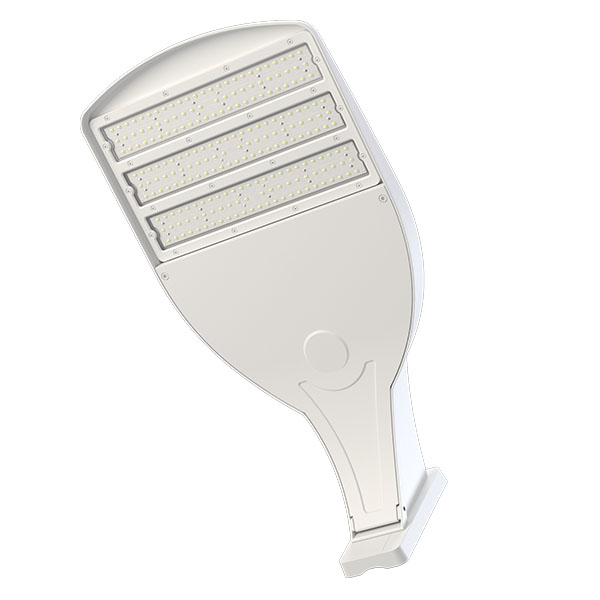

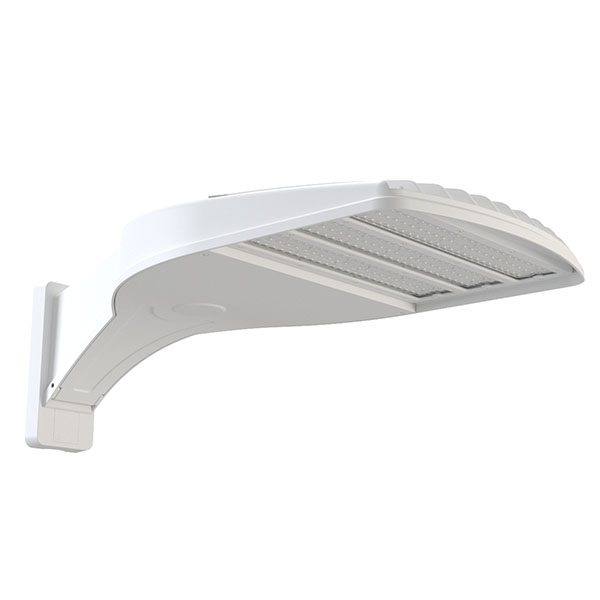

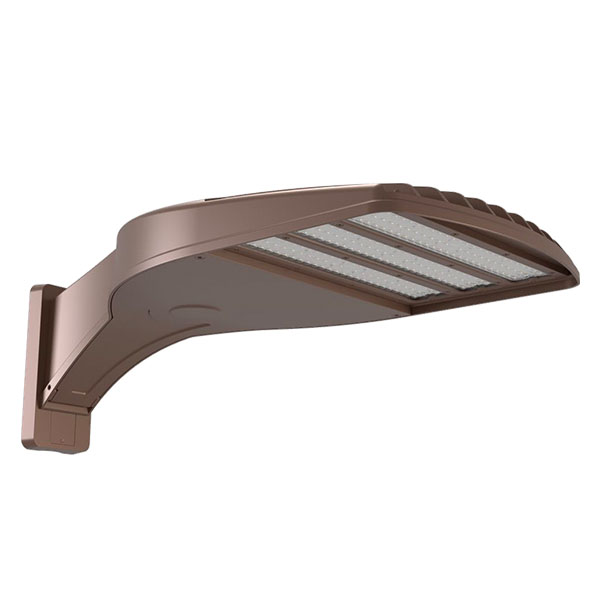

100W 150W 200W Led shoebox light

  • 100W 150W 200W Led shoebox light
  • 100W 150W 200W Led shoebox light
  • 100W 150W 200W Led shoebox light
  • 100W 150W 200W Led shoebox light
  • 100W 150W 200W Led shoebox light
100W 150W 200W Led shoebox light100W 150W 200W Led shoebox light100W 150W 200W Led shoebox light100W 150W 200W Led shoebox light100W 150W 200W Led shoebox light

100W 150W 200W Led shoebox light

  • Code: CAL1S/CAL1M
  • Voltage: 120-277V
  • CCT: 4000K/5000K
  • Bracket: Slip fitter or Trunnion
  • Product description:
  • INQUIRY

APPLICATIONS

CAL1 Series parking lot Lights ideal for street lighting, parking lots and pole-mount applications for your commercial lighting project or retrofit.

SPECIFICATIONS

01. Corrosion resistant, rugged die-cast aluminum housing with powder coat paint finish.

02. Imported anti-UV PC lens is 95% efficient minimizing light loss.

03. IP65 grade suitable for outdoor application.

04. All screws are stainless to ensure no rusty.

05. Direct replacement for 150 watt – 250 watt traditional style LED parking lot light.

06. Back cover with rubber inside to ensure IP65. Easy to open fixture,

quick access to electric.

07. Slip fitter mounted as standard, straight arm as optional.

08. IP67 driver and ROHS compliant, ambient operating temperature -40°C to 40°C.

09. ETL and DLC listed.

10. Twist-lock photocell and SPD are available as optional.

11. 120-277V/347V/480V.

Dimensions:(mm)

Item

Value

Product Code

CAL1S/CAL1M

Mount

Trunnion Mount, Slip Fitter Mount, Round & Square Mount

Watt

100w/150w/200w

Voltage

120-277V/347v-480v

Beam Option

TYPE II, TYPE III, TYPE IV, TYPE V

CCT

3000K/4000K/5000K

Chip

Lumileds 3030

Driver

Weledpower (UL listed)

Lumen

100W: 14,500 lumen

150W: 22,000 lumen

200W: 30,000 lumen

Efficiency

140-150 LPW

Weight

100W: 6.3 Kg

150W: 6.9 Kg

200W: 7.5 Kg

Packing

500*300*180mm

Finish

Standard: Bronze

Installation

Pole installation/Wall mounted

Options

SPD

Twist-in photocell

Motion sensor
