   >   50W 70W 80W SMD Led flood light

50W 70W 80W SMD Led flood light

  • 50W 70W  80W SMD Led flood light
50W 70W  80W SMD Led flood light

50W 70W 80W SMD Led flood light

  • Code: CFL2S
  • Voltage: 120-277V
  • CCT: 4000K/5000K
  • Bracket: Knuckle or Trunnion
  • Product description: 50W 70W smd Led flood light for outdoor applications, 3000K, 4000K, 5000K, medium size flood light, full kind of bracket like knuckle, yoke and u bracket.
  • INQUIRY


APPLICATIONS

Compact LED flood with a variety of NEMA distribution for lighting applications such as building façades, sign lighting and wall washing in both commercial and industrial outdoor led flood light applications.

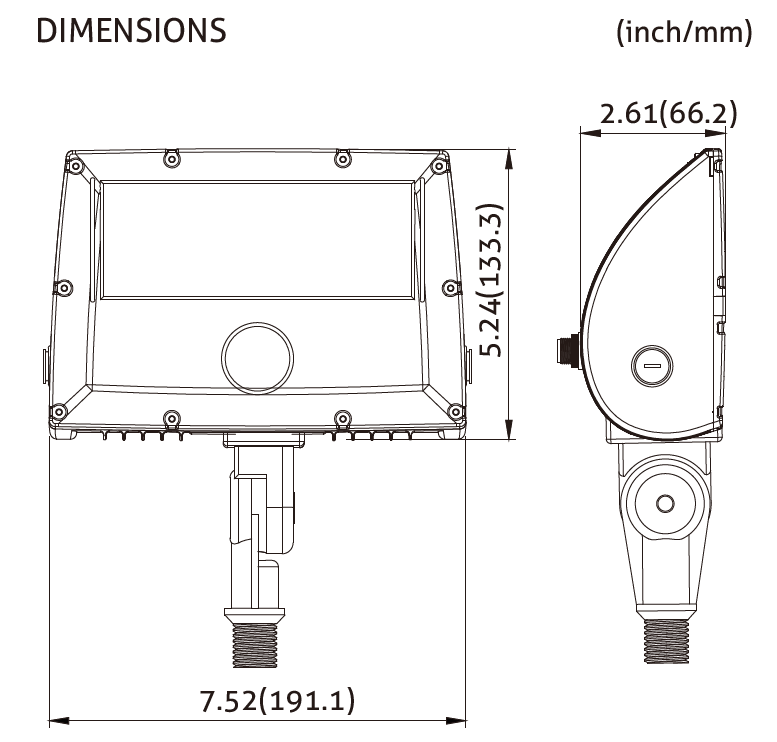

Dimensions

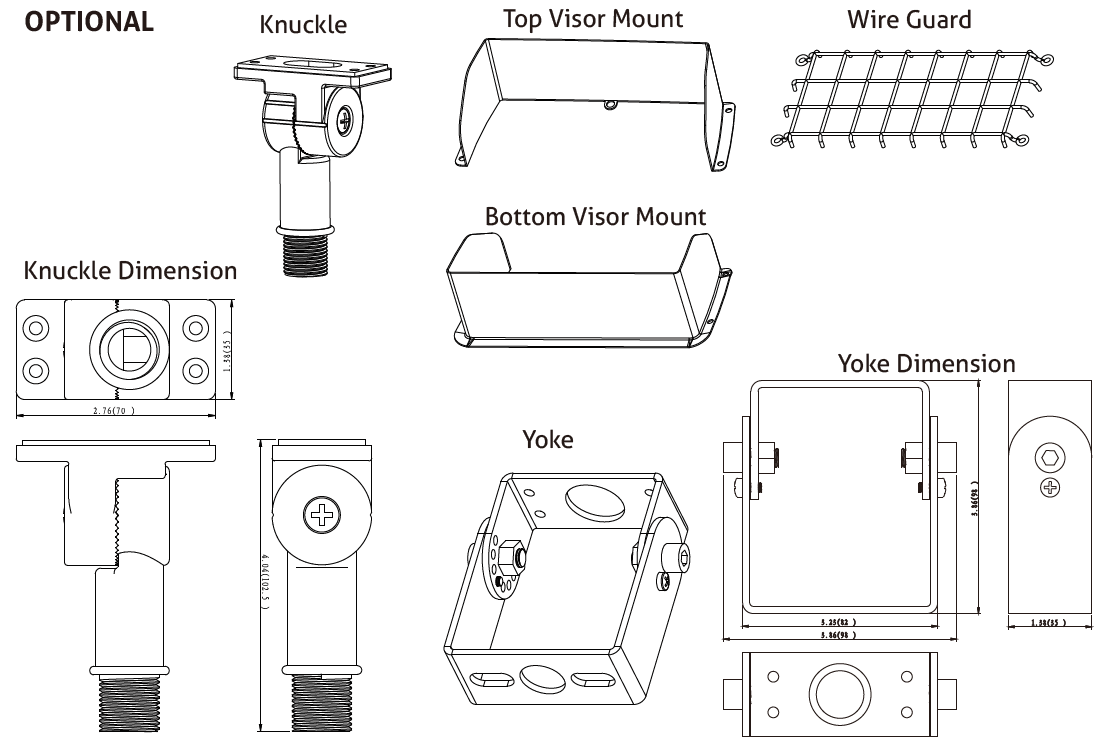

Optional


SPECIFICATIONS

01. Corrosion resistant, rugged die-cast aluminum housing with powder coat paint finish.

02. High impact UV stabilized PC injection lens provide a variety of NEMA distribution.

03. Compact frame to fix lens with water proof rubber inside to ensure IP65 grade.

04. Stainless screws ensure anti-rust.

05. Design concept came from a “bird” stand on the tree with patent design and perfect detail.

06. Compact design housing isolates LED module from driver which ensure heat sink.

07. Installation of different brackets are “field replaceable”, only remove 4 screws can change

the installed bracket, good for stock flow systems, easy to manage.

08. Easy replacement for different kind of NEMA distributions, only remove 10 screws of

frame cover, then replace the installed UV PC injection lens with new one.

09. IP67 driver and ROHS compliant, ambient operating temperature -40°C to 40°C.

10. ETL and Premium DLC listed.

Item

Value

Product Code

CFL2M

Mount

1/2” thread or Trunnion (U-bracket)

Watt

50w/70w/80w

Voltage

120-277V

Beam Option

Wide beam: NEMA 7H6V

CCT

3000K/4000K/5000K

Chip

Lumileds 3030

Driver

Weledpower (UL listed)

Lumen

50W led flood light: 6621.1 lumen

70W led flood light: 9101.6 lumen

80W led flood light: 10421 lumen

Efficiency

50W led flood light: 134.10 LPW

70W led flood light: 125.80 LPW

80W led flood light: 126.3 LPW

Weight

50W led flood light: 4.7 Kg

70W led flood light: 5.1 Kg

80W led flood light: 5.4Kg

Packing

Single carton(1pcs): 325*322*130mm

Finish

Standard: Bronze (RAL8019)

Customer Color: White or others

Installation

Knuckle or U-racket

Options

Button on photocell for led flood light

SPD

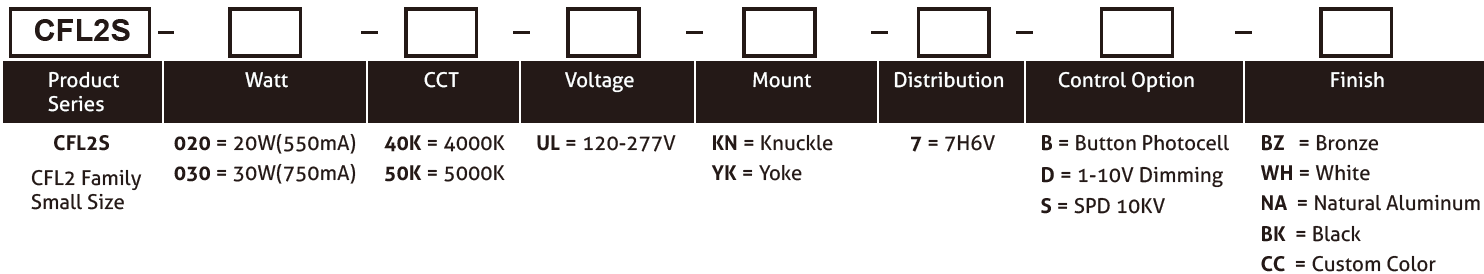

Ordering Info
