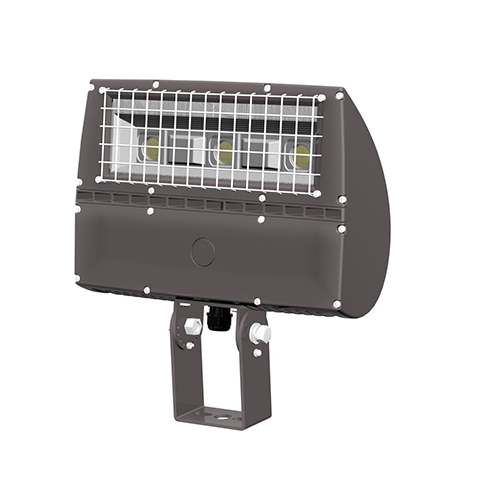

80W 100W 120W 150W COB Led flood light

  • Code: CFL1S
  • Voltage: 120-277V
  • CCT: 4000K/5000K
  • Bracket: Slip fitter or Trunnion
  • Product description: 80W 100W 120W 150W COB Led flood light light for outdoor applications, 3000K, 4000K, 5000K, medium size flood light, full kind of bracket like slip fitter, yoke and u bracket.
  • INQUIRY


APPLICATIONS

Compact LED flood with a variety of NEMA distribution for lighting applications such as building façades, sign lighting and wall washing in both commercial and industrial applications.


SPECIFICATIONS

01. Corrosion resistant, rugged die-cast aluminum housing with powder coat paint finish.

02. High impact UV stabilized PC injection lens provide a variety of NEMA distribution.

03. Compact frame to fix lens with water proof rubber inside to ensure IP65 grade.

04. Stainless screws ensure anti-rust.

05. Design concept came from a “bird” stand on the tree with patent design and perfect detail.

06. Compact design housing isolates LED module from driver which ensure heat sink.

07. Installation of different brackets are “field replaceable”, only remove 4 screws can change

the installed bracket, good for stock flow systems, easy to manage.

08. Easy replacement for different kind of NEMA distributions, only remove 10 screws of

frame cover, then replace the installed UV PC injection lens with new one.

09. IP67 driver and ROHS compliant, ambient operating temperature -40°C to 40°C.

10. ETL and Premium DLC listed.


Item

Value

Product Code

CFL2L

Mount

Slip fitter or Trunnion (U-bracket)

Watt

8w/100w/120W/150W

Voltage

120-277V/347V-480V

Beam Option

Wide beam: NEMA 7H6V

Middle beam: NEMA 5H5V

CCT

3000K/4000K/5000K

Chip

Citizen or Bridgelux

Driver

Weledpower (UL listed)

Lumen

80W: 10421 lumen

100W: 12597 lumen

120W: 13760 lumen

150W: 19545 lumen

Efficiency

80W: 126.30 LPW

100W: 124.90 LPW

120W: 121.30 LPW

150W: 133.70 LPW

Weight

80W: 7.6 Kg

100W: 7.9 Kg

120W: 8.5 Kg

150W: 8.8 Kg

Packing

Single carton(1pcs): 465*409*171 mm

Finish

Standard: Bronze (RAL8019)

Customer Color: White or others

Installation

Slip fitter or Trunnion (U-racket)

Options

Twist-in photocell

SPD
