full cutoff Glass lens

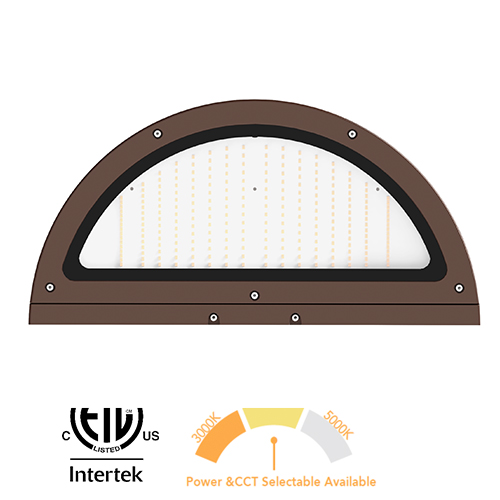

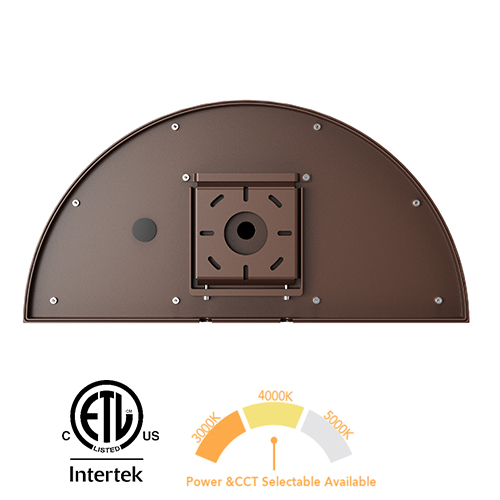

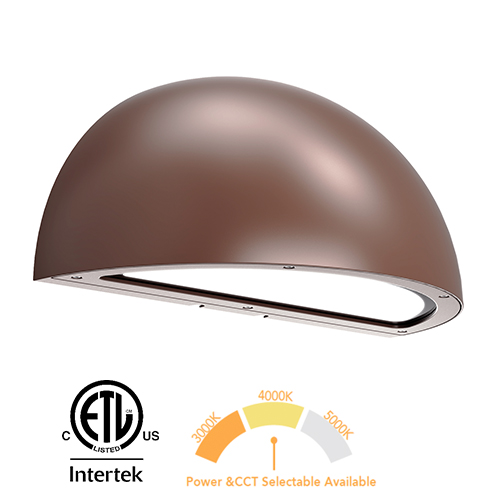

40W 60W 80W Half Moon Architectural LED Wallpack

40W 60W 80W Half Moon Architectural LED Wallpack

Code: CRWP02
Voltage: 120-277V
CCT: 4000K/5000K
Bracket: Wall mounted
Product description:
INQUIRY

APPLICATIONS

Outdoor wall mount light Typically found on office buildings, government buildings, hospitals, college campuses, hotels, stores, and some residential settings.

SPECIFICATIONS

● Rugged die-cast housing finished in a durable powder coat finish.
● Architectural design for a better look.
● Each fixture is easily installed in a standard recessed junction box.
● Long-life LEDs lasting up to 50,000 hours.
● IP65 rated and suitable for use in ambients from -40℃ to 50 ℃.
● Equivalent up to 250 Watt Metal Halide or High-pressure sodium fixture.
● Amber LED 2200K available for turtle safety.
● ETL wet location listed and DLC qualified.
● Type IV Pattern produces a forward distribution which is perfect for walls.

Item	Value
Product Code	CRWP02
Mount	Wall mounted
Watt	40w/60w/80w Selectable & 20W Up light
Voltage	120-277V/347-480V
Beam Option	Full cutoff
CCT	3000K/4000K/5000K Selectable
Chip	Lumileds 3030
Driver	UL listed driver
Lumen	40W: 5200 lumen 50W: 6600 lumen 80W: 10400 lumen
Efficiency	130 LPW
Weight	40W: 4.4 Kg 60W: 4.5 Kg 80W: 4.6 Kg
Packing	40W-80W(1pcs): 480250250mm
Finish	Standard: Bronze (RAL8019) Customer Color: White or others
Installation	Wall mounted
Options	Button on photocell SPD
