   >   230W 300W 360W Led shoebox light

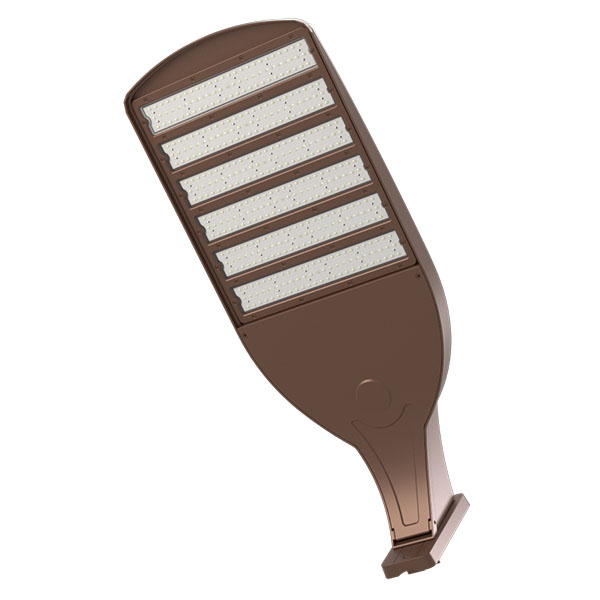

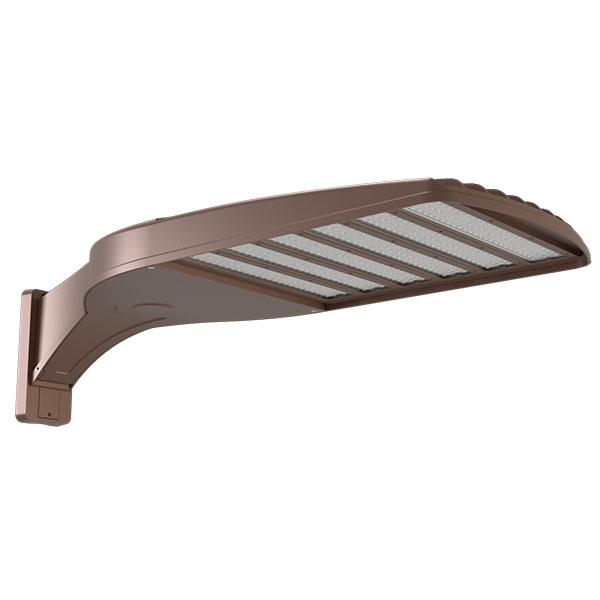

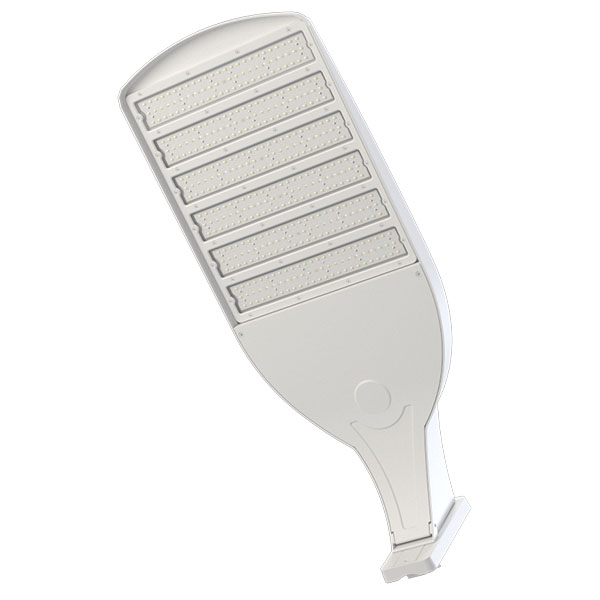

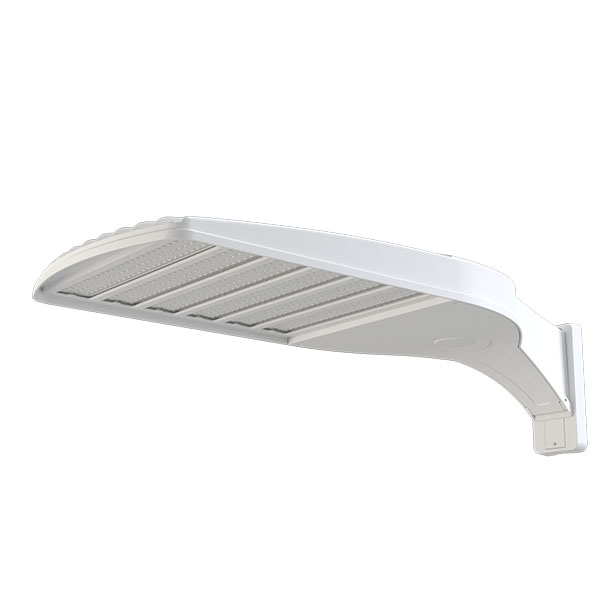

230W 300W 360W Led shoebox light

  • 230W 300W 360W Led shoebox light
  • 230W 300W 360W Led shoebox light
  • 230W 300W 360W Led shoebox light
  • 230W 300W 360W Led shoebox light
230W 300W 360W Led shoebox light230W 300W 360W Led shoebox light230W 300W 360W Led shoebox light230W 300W 360W Led shoebox light

230W 300W 360W Led shoebox light

  • Code: SB18A
  • Voltage: 120-277V
  • CCT: 4000K/5000K
  • Bracket: Pole Mounted
  • Product description:
  • INQUIRY


APPLICATIONS

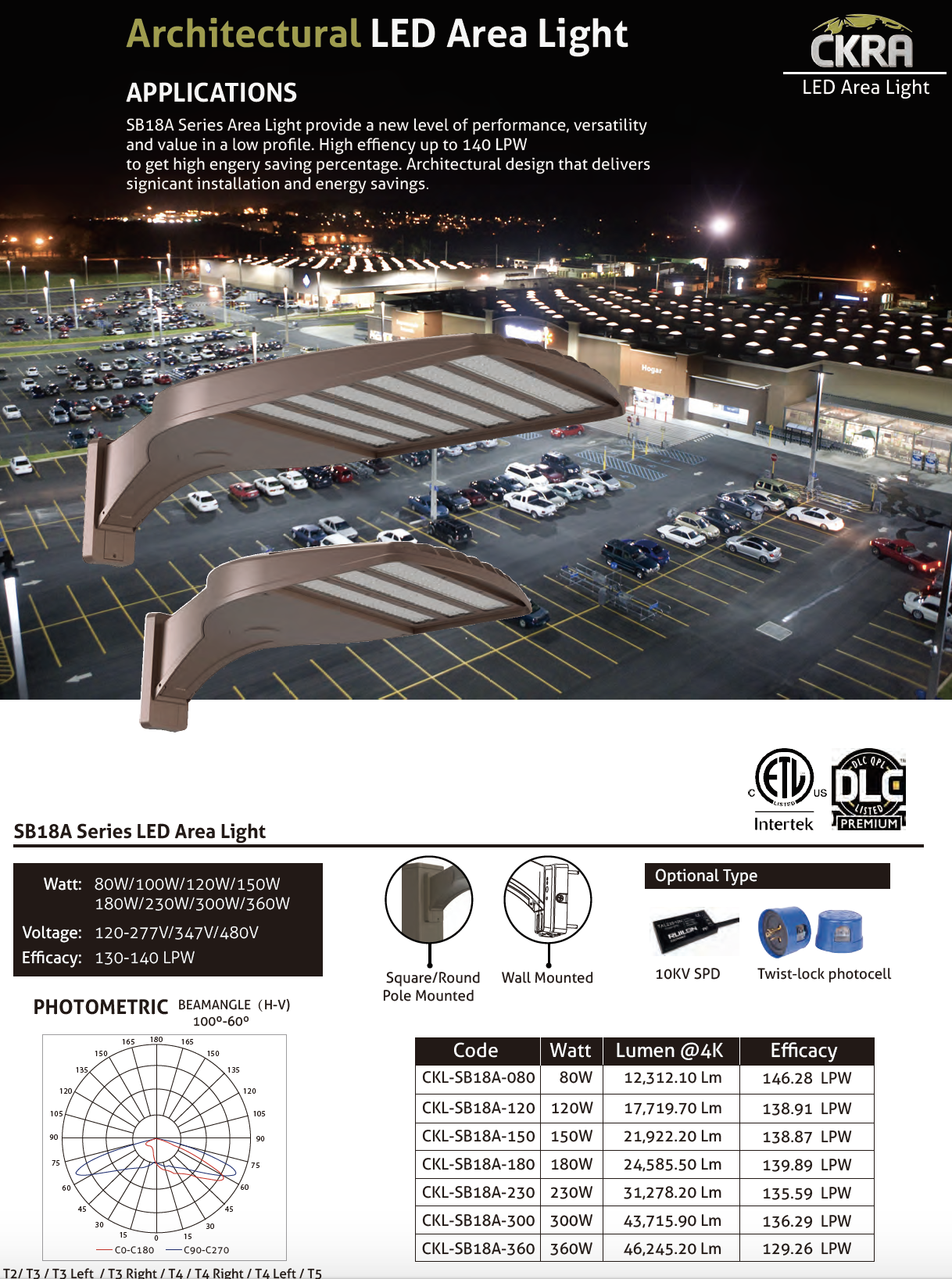

SB18A Series Area Light provide a new level of performance, versatility and value in a low profile. High efficacy up to 140 LPW to get high energy saving percentage. Architectural design that delivers Signiant installation and energy savings.

SPECIFICATIONS
01. Corrosion resistant, rugged die-cast aluminum housing with powder coat paint finish.
02. The front view imported anti-UV PC lens is 95% efficient minimizing light loss.
03. IP65 grade suitable for outdoor application.
04. Stainless screws ensure anti-rust.
05. Direct replacement for 250 watt – 500 watt traditional style HID area Lights.
07. Front electric cover with rubber inside to ensure IP65. Only 2 screws to open fixture,
quick access to electric.
08. Universal bracket for round / square pole mounted as standard, available for wall mounted.
09. IP67 driver and ROHS compliant, ambient operating temperature -40°C to 40°C.
10. ETL and premium DLC listed.
11. Twist photocell and SPD are available as optional.
12. 120-277V/347V/480V


Item

Value

Product Code

CKL-SB18A-(230-360)

Mount

Pole mounted or wall mounted

Watt

230w/300w/360w

Voltage

120-277V

Beam Option

110º

CCT

4000K/5000K

Chip

Lumileds 3030

Driver

Weledpower (UL listed)

Lumen

230W: 31000 lumen

300W: 44000 lumen

360W: 46000 lumen

Efficiency

140 LPW

Weight

230W: 12.2 Kg

300W: 12.8 Kg

360W: 13.2 Kg

Packing

Single carton(1pcs): 975*430*235mm

Finish

Standard: Bronze

Customer Color: Yes

Installation

Pole mounted or wall mounted

Options

SPD,photocell
