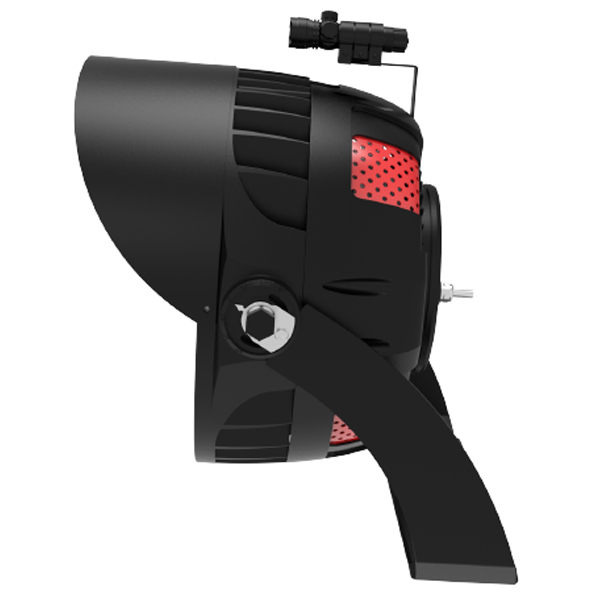

1000w led stadium light

500-1200w led stadium light

Code: CSL1
Voltage: 120-277V
CCT: 4000K/5000K
Bracket: U bracket
Product description: 500-1200w led stadium light, high watt Led sport lights used for tennis counts, golf courses, sports counts and others. Energy-efficient solution for lighting stadiums and sports fields.
INQUIRY

APPLICATIONS

High watt Led sport lights used for tennis counts, golf courses, sports counts and others.

Energy-efficient solution for lighting stadiums and sports fields.

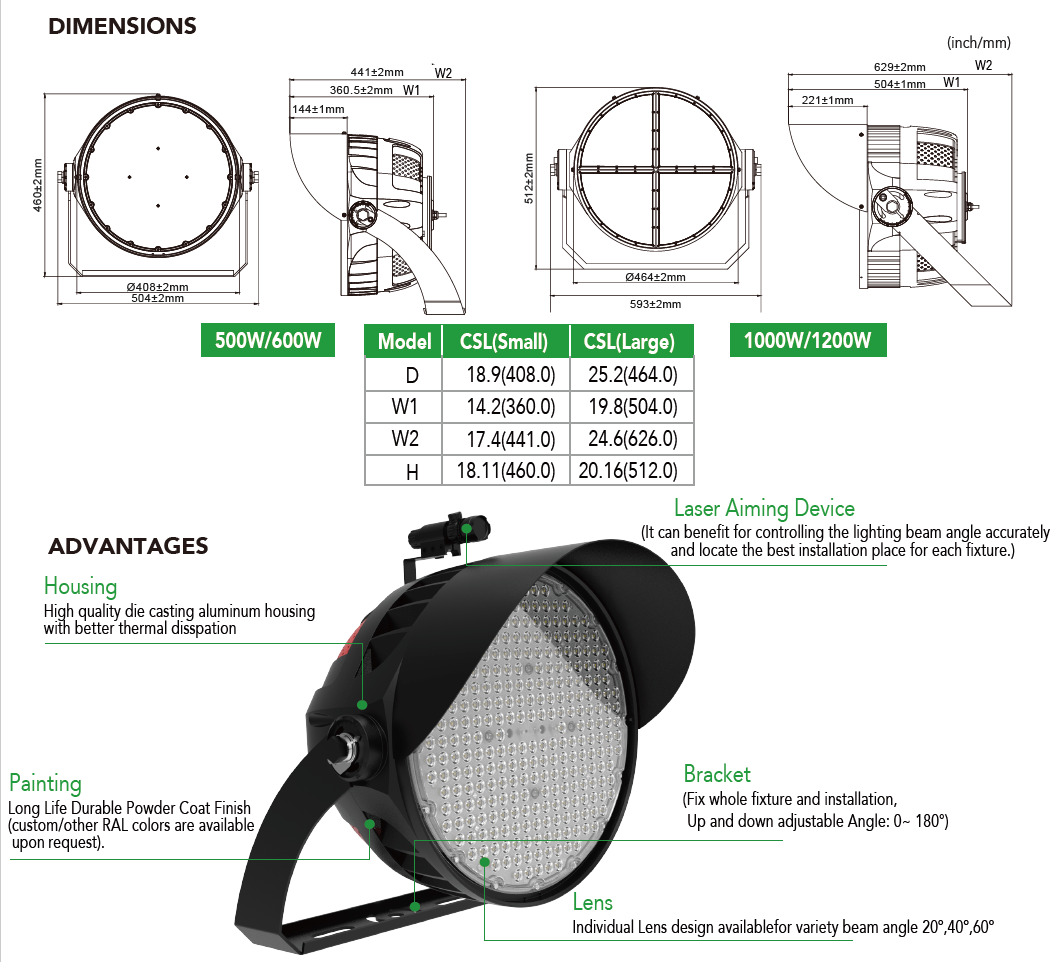

SPECIFICATIONS

01. Corrosion resistant, rugged die-cast aluminum housing with powder coat paint finish.

02. High impact UV stabilized PC injection lens provide a variety of distribution.

03. Compact frame to fix lens with water proof rubber inside to ensure IP65 grade.

04. Stainless screws ensure anti-rust.

05. IP65 internal driver.

06. Compact design housing isolates LED module from driver which ensure heat sink.

07. Easy to install and operate.

08. Long lifespan, energy saving.

09. ROHS compliant, ambient operating temperature -40°C to 40°C.

11. Green and eco-friendly without mercury.

12. Input voltage 120-277V.

Item	Value
Product Code	CSL1
Mount	U-bracket
Watt	500-1200w
Voltage	120-277V/347V-480V
Beam Option	Wide beam: narrow 15º Middle beam: 30º
CCT	3000K/4000K/5000K
Chip	Luminleds 5050
Driver	Inventronics (UL listed)
Lumen	1000W led stadium light: 150,000 lumen
Efficiency	1000W led stadium light: 150 LPW
Weight	1000W led flood light: 31.5 Kg
Packing	Single carton(1pcs): 735680400 mm
Finish	Standard: Bronze (RAL8019) Customer Color: White or others
Installation	U-racket
Options	Twist-in photocell SPD
