   >   full cutoff Glass lens

full cutoff Glass lens

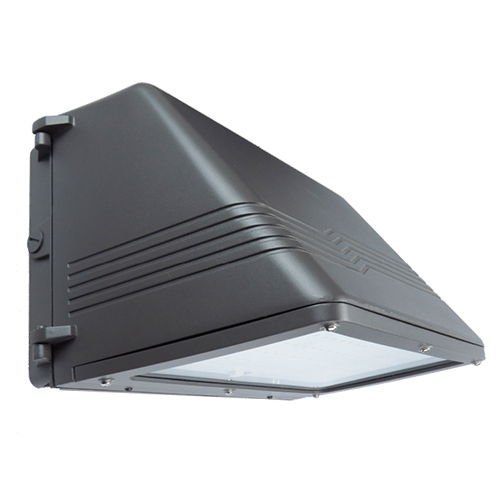

  • 40w 60w 80w full cutoff wall pack glass lens
  • 40w 60w 80w full cutoff wall pack glass lens
  • 40w 60w 80w full cutoff wall pack glass lens
  • 40w 60w 80w full cutoff wall pack glass lens
40w 60w 80w full cutoff wall pack glass lens40w 60w 80w full cutoff wall pack glass lens40w 60w 80w full cutoff wall pack glass lens40w 60w 80w full cutoff wall pack glass lens

40w 60w 80w full cutoff wall pack glass lens

  • Code: CWP2S
  • Voltage: 120-277V
  • CCT: 4000K/5000K
  • Installation: Surface mounted
  • Product description:
  • INQUIRY

APPLICATIONS

Outdoor wall mount light Typically found on office buildings, government buildings, hospitals, college campuses, hotels, stores, and some residential settings.

SPECIFICATIONS

01. Corrosion resistant, rugged die-cast aluminum housing with powder coat paint finish.

02. The front view tempered glass lens is 95% efficient minimizing light loss.

03. IP65 grade suitable for outdoor application.

04. All screws are stainless to make sure no rusty.

05. Direct replacement for 100 watt – 250 watt traditional style HID wall packs

06. Lens with rubber inside to make sure IP65. Easy to open fixture,

quick access to electric.

07. Wall mounted as standard, one person can finish installation, save labor cost.

08. IP67 driver and ROHS compliant, ambient operating temperature -40°C to 40°C.

09. ETL and DLC listed.

10. Button on photocell and SPD is available as optional.

11. 120-277V/347V/480V

Item

Value

Product Code

CWP2S

Mount

Surface mounted

Watt

40w/60w/80w

Voltage

120-277V

Beam Option

Full cutoff

CCT

3000K/4000K/5000K

Chip

Lumileds 3030

Driver

Weledpower (UL listed)

Lumen

40W: 4950 lumen

60W: 7300 lumen

80W: 9100 lumen

Efficiency

40W: 127 LPW

60W: 126 LPW

80W: 124.5 LPW

Weight

20W: 4.5 Kg

30W: 4.9 Kg

30W: 5.1 Kg

Packing

Single carton(1pcs): 420*290*350mm

Finish

Standard: Bronze (RAL8019)

Customer Color: White or others

Installation

Surface mounted

Options

Button on photocell

SPD
